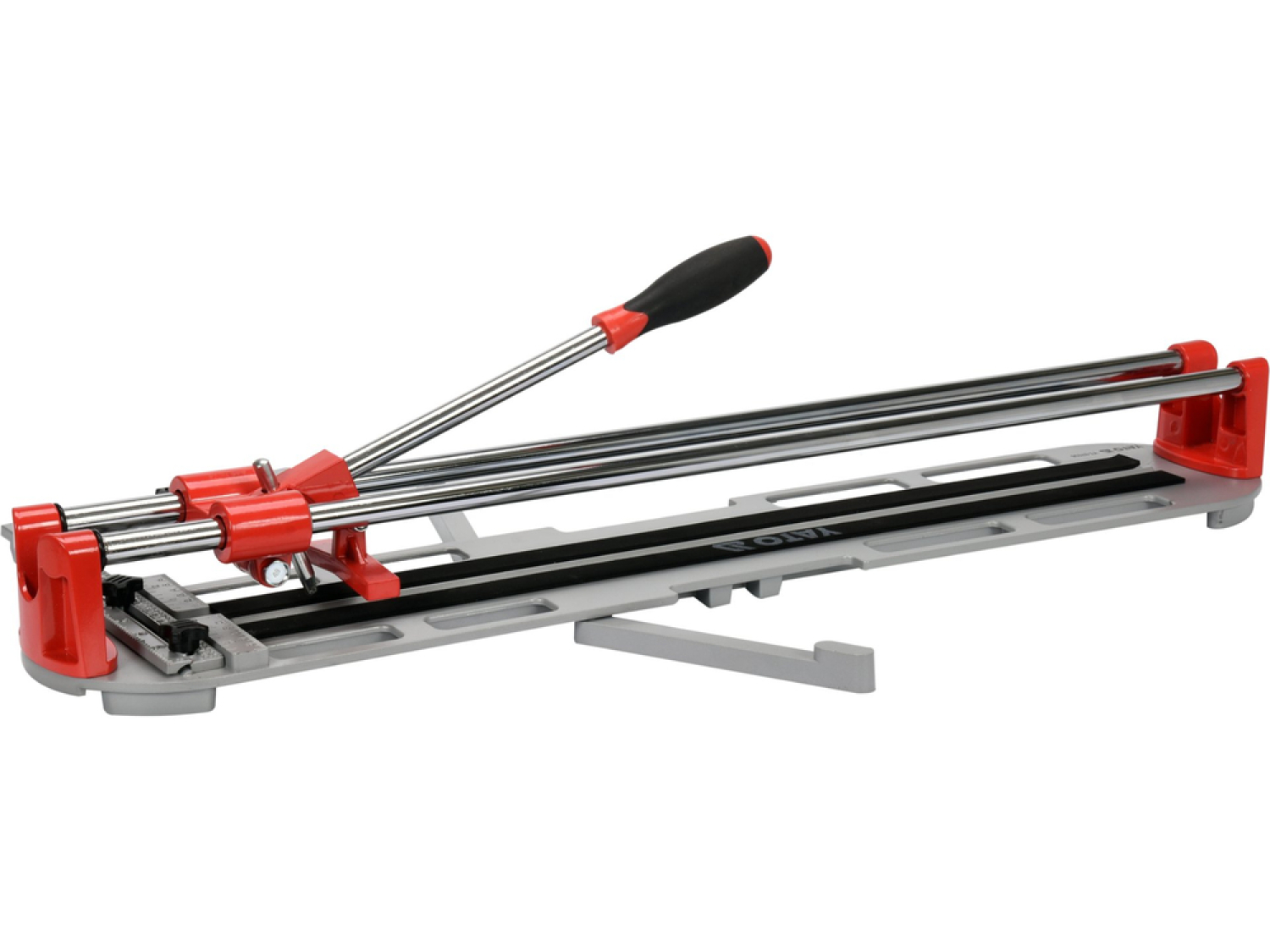

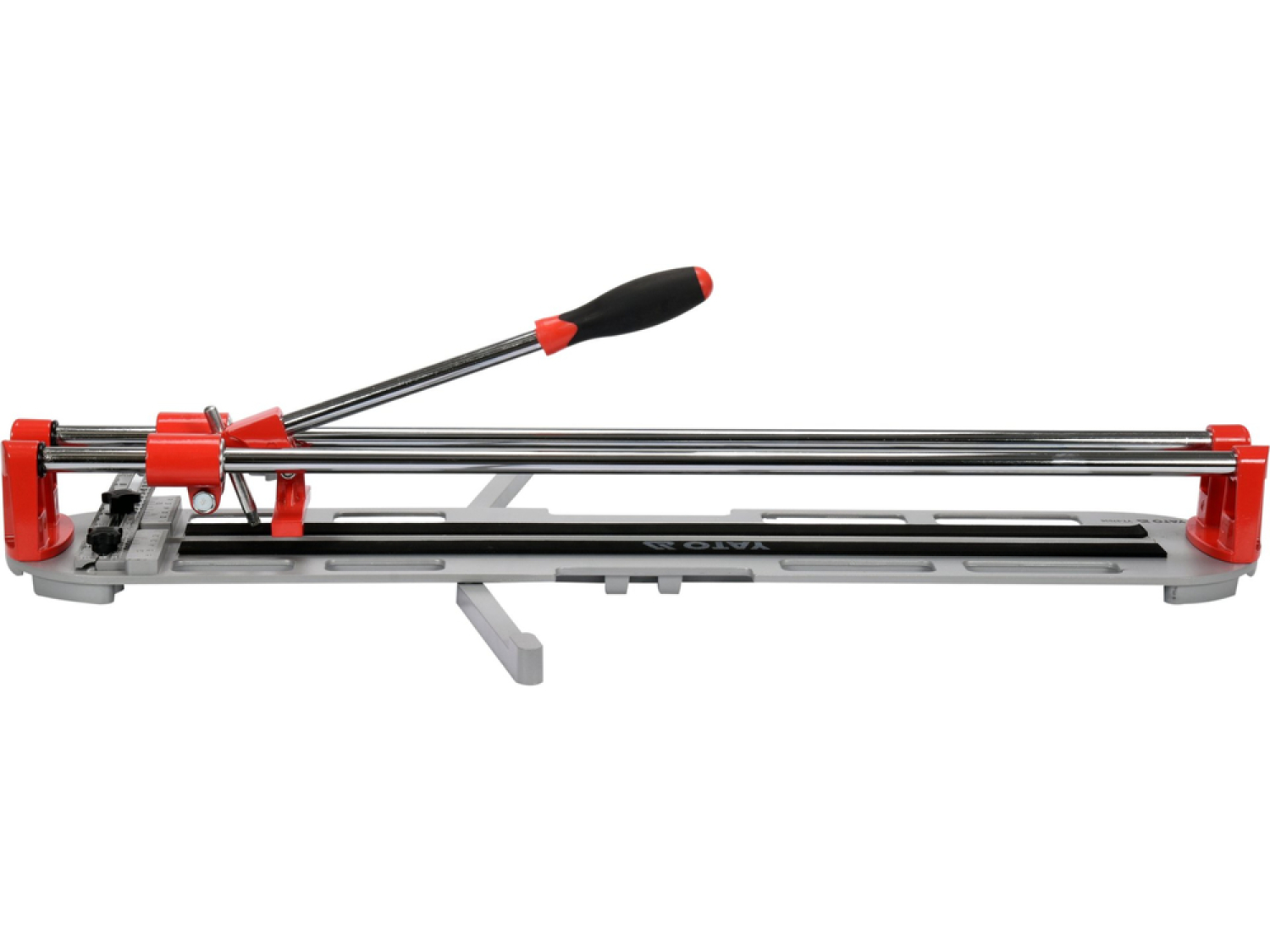

Tile Cutter YT-37036 YATO

The YATO YT-37036 tile cutter is a professional tool designed for precision cutting and breaking of ceramic tiles. It features a stable base, two parallel guides, and a cutting unit that includes a breaker and cutting disc, making it ideal for craftsmen and discerning do-it-yourselfers.

Characteristics:

• Equipped with an additional 200 mm long adjustable bevel with a movable arm
• Base made of die-cast aluminum, with two movable supports
• Breaker on bearings, with a steel lever that has a diameter of 15 mm

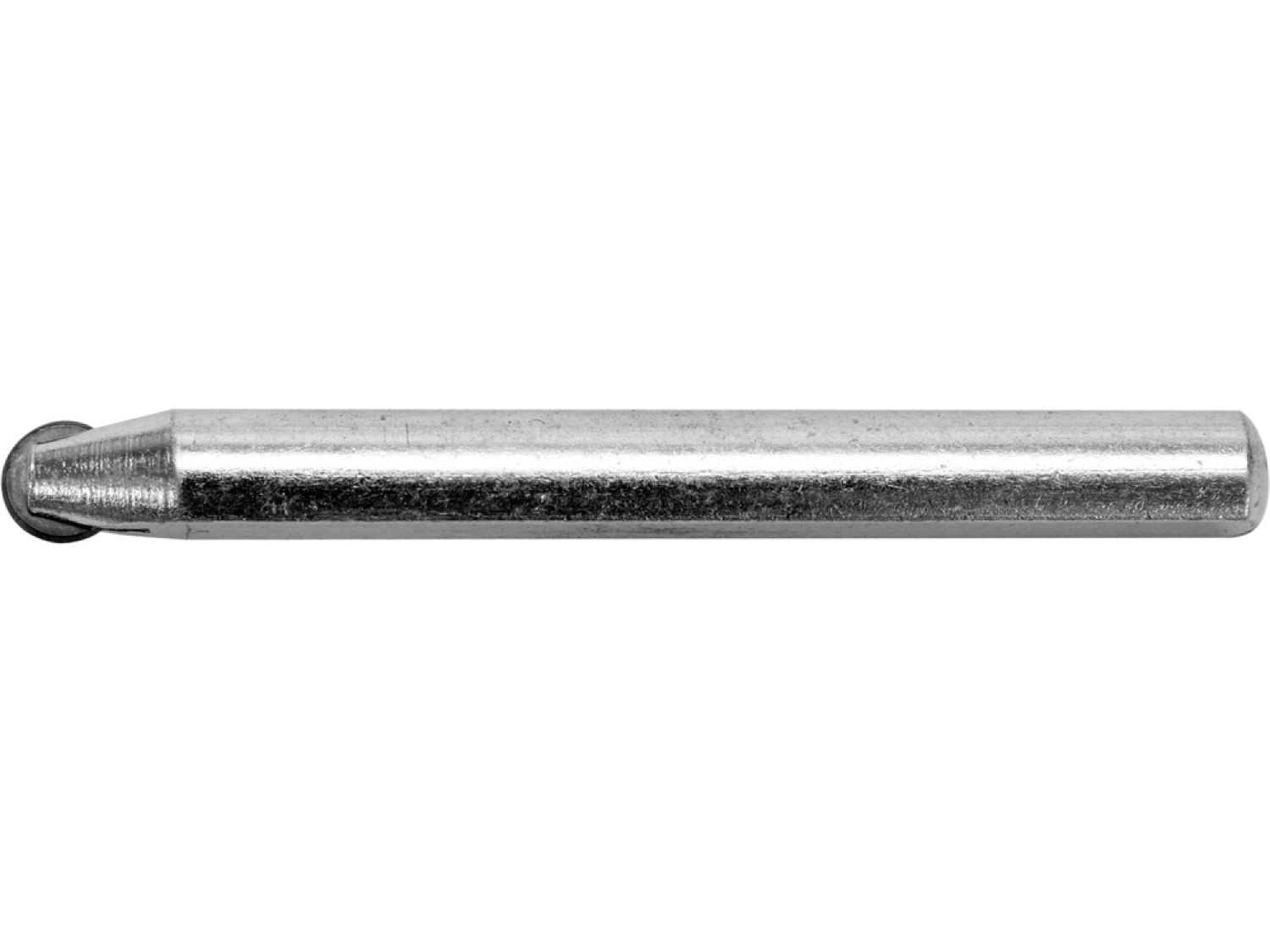

• Cutting wheel with a diameter of 8 mm, mounted on a grooved mandrel
• Two strips of sponge with a width of 20 mm in the base
• Two-component handle

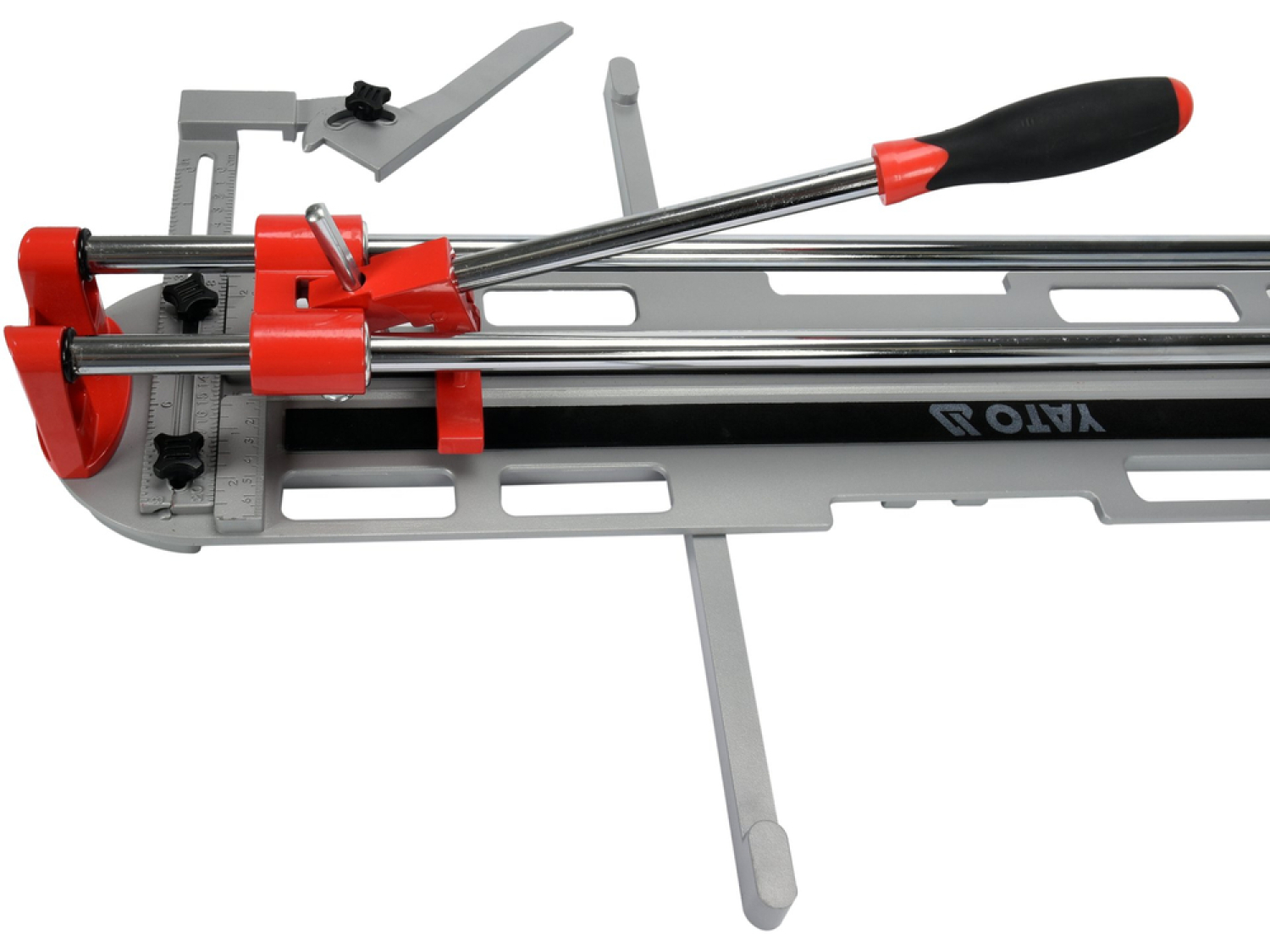

The base of the YATO YT-37036 tile cutter is constructed from pressure-cast aluminum and includes two movable supports to accommodate large tiles, as well as a metal movable angle bracket. The bearing-mounted breaker assembly is fitted on sturdy steel guides made from 16 mm diameter tubing. The cutting knife is a circular blade with a diameter of 8 mm, permanently mounted on a mandrel sized 10 x 82 mm. The work surface has two strips of technical micro-rubber to facilitate tile breaking. The breaker lever, made of steel with a diameter of 15 mm, also acts as a knife position lock.

Usage warnings:

Warning! Always use personal safety equipment when working.

• Series: GRE
• Max. tile thickness: 12 mm
• Cutting length: 600 mm
• Horizontal cutting angle: 0-45 ˚
• Base dimensions: 790 x 150 mm
• Guide bar diameter: 16 mm
• Cutting wheel dimensions: 8 x 10 x 82 mm
• Material: Steel
• Blade material: Carbide
• Bearing: Yes
• Bearing type: Ball
• Weight: 4.93 kg
• Set includes: Tile cutting device and angle
• Application: Glaze
