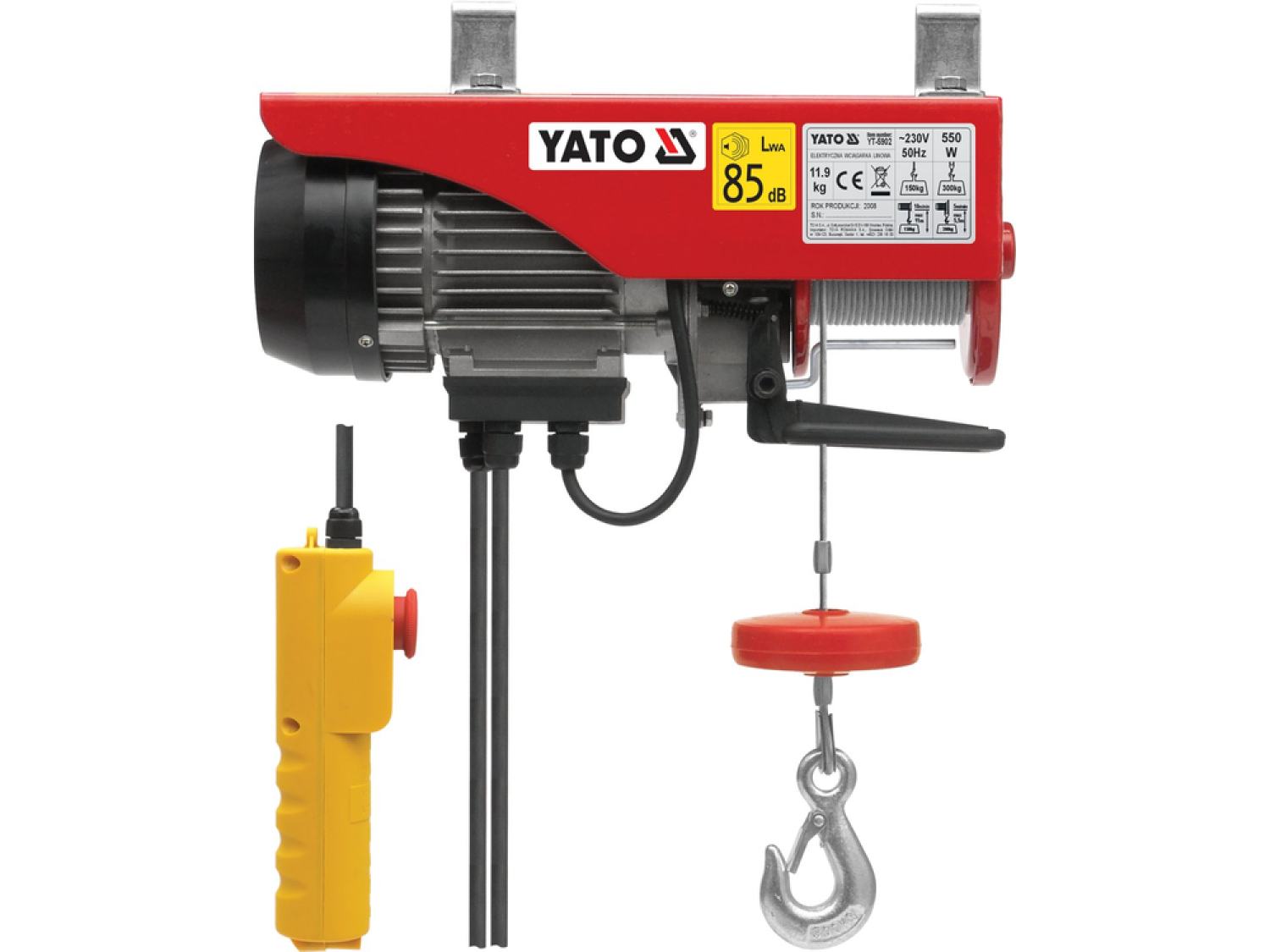

Electric Hoist 550W 150/300Kg YT-5902 YATO

The YATO Electric Hoist 550W, model YT-5902, is an efficient lifting solution designed for the construction industry and executive companies. It is specifically used to lift loads vertically at significant heights, making it ideal for various construction tasks.

Application: This winch is utilized for pulling loads in a vertical axis at high elevations.

Construction Details: The hoist features a steel cable as the supporting element, driven by an electric motor with a low-speed gearbox. It includes an electro-mechanical brake that secures the gear when power is disconnected, and a control console attached to a long electric cable for ease of operation. This makes it suitable for lifting small loads during construction.

• Series: GRE
• Power: 550 W
• Maximum Weight: 150 kg (without additional hook), 300 kg (with additional hook)
• Maximum Lifting Height: 11 m (without additional hook), 5.5 m (with additional hook)
• Lifting Speed: 8 m/min (without additional hook), 4 m/min (with additional hook)
• Voltage: 230 V a.c.
• Frequency: 50 Hz
• Rope Length: 12 m
• Rope Diameter: 3 mm
• Rope Strength: ≥1870 N/mm²
• Working Mode: S3 20% 10 min
• Mechanisms Group: M1
• Nominal Current: 2.4 A
• Electric Insulation Class: I
• Insulation Grade: B
• Protection Grade: IP54
• Acoustic Pressure: 52.2 ± 0.9 dB(A)
• Acoustic Power: 75.4 ± 4.8 dB(A)
• Weight: 11 kg
