Lodlampa gāzes, ar piezo Vorel

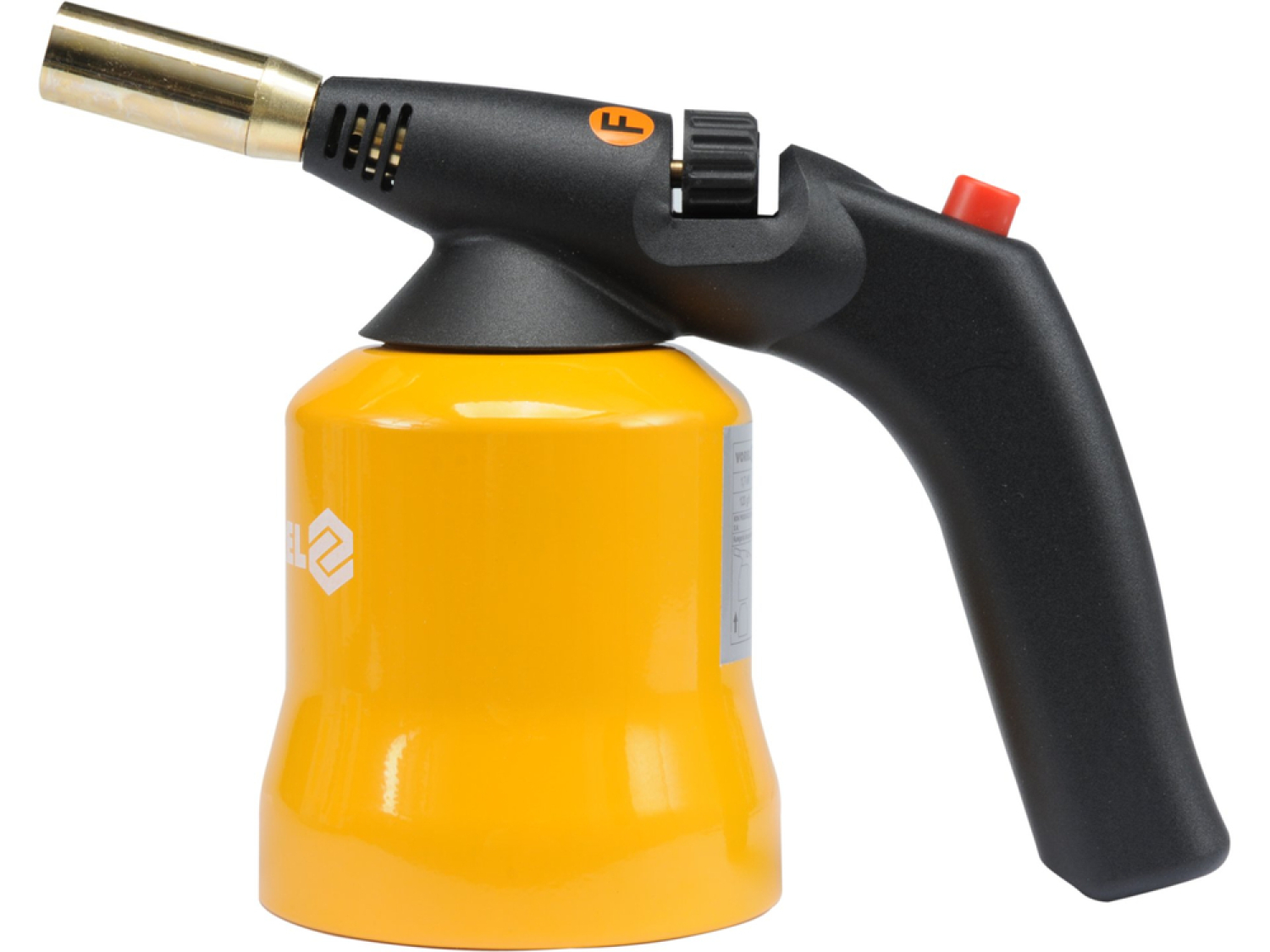

Liquid gas blow lamp with piezo ignition by VOREL.

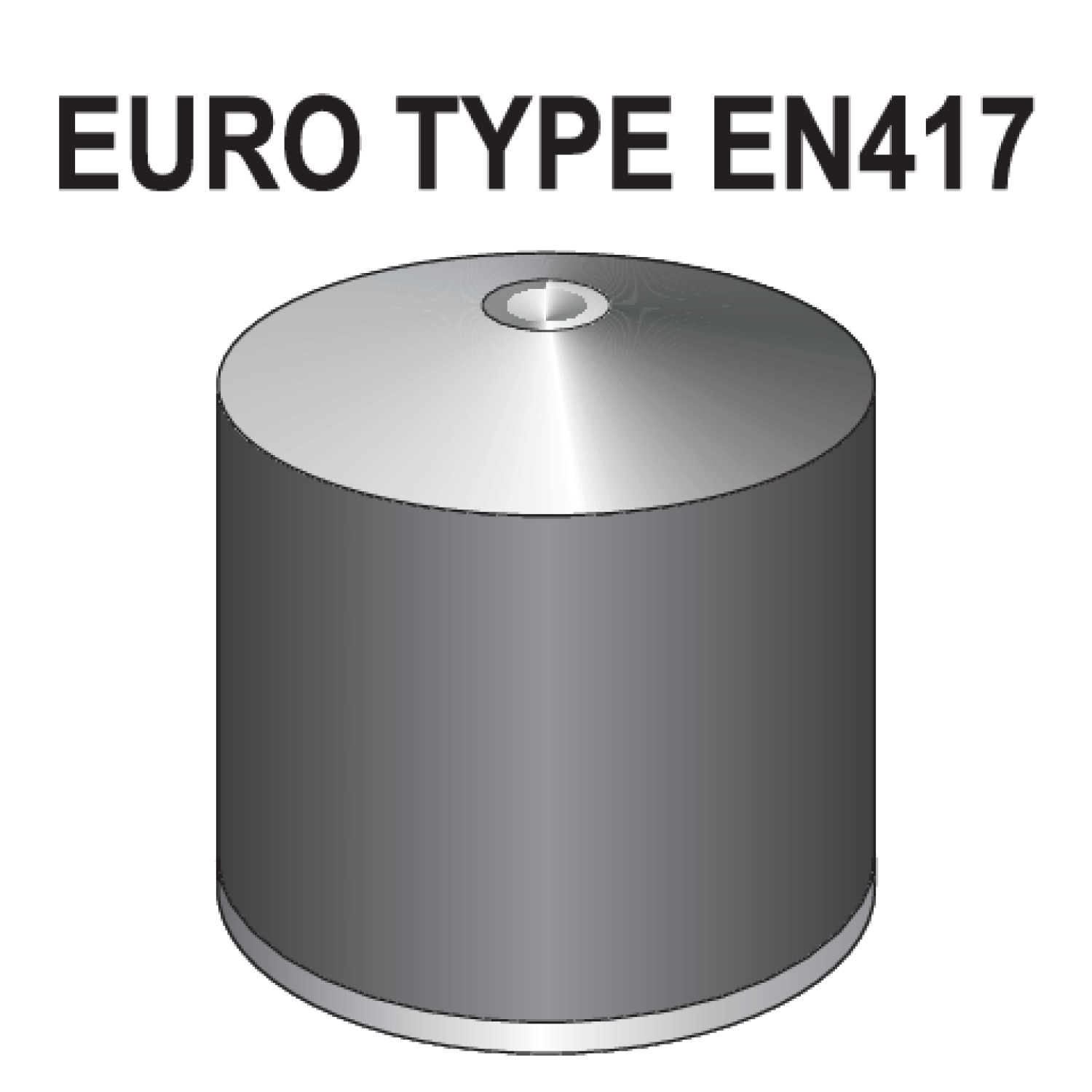

• Powered by propane-butane gas cartridges (190g, EN417 type 200 - widely available on the market).
• Max operating temperature of 1200°C.
• Power output of 1.7kW.
• Average gas consumption of 123g/h.
• Features piezo ignition.
• Made of durable metal casing.
• Controlled flame size for precision tasks.

Application:

This soldering lamp is designed for:

• soldering
• welding
• heating
• de-soldering
• removing paint
• defrosting
• shaping or bending pipes
• lighting barbecues
• gastronomy

Installation of gas container:

1. Close the gas valve by turning the regulator knob all the way in the direction marked "-". Ensure the needle and gasket are not damaged.
2. Remove the wire strut. Insert the gas canister into the lamp base until the canister diaphragm is punctured.
3. Once punctured, gas will flow out, and do not disassemble the canister until it's completely empty.
4. Secure the container with the wire strut to prevent slipping.

Usage warnings:

This device should solely use 190g disposable containers containing technical butane gas. Operate in well-ventilated areas. Read the instructions before use. Use safety glasses when operating. Ensure connections or changes to the containers are made away from any flames or sparks, and keep a safe distance from bystanders. Be cautious, as the metal parts of the burner will be hot after use; allow the lamp to cool down.

• Series: GRD
• Power: 1.7 kW
• Flame temperature: 1200 ˚C
• Tank capacity: 190 g
• Gas type: butane from an external cylinder
• Gas tank type: under direct pressure, type EN417
• Gas usage: 123 g/h
• Casing material: metal
• Piezo ignition: yes
• Flame adjustment: yes
• Weight with empty tank: 0.5 kg
• Application: soldering, joining, heating, varnish removal, unfreezing, shaping or bending pipes, lighting the grill, gastronomy
