Puscollas trieciena ratchets, 280 mm, 9022SR-1, augsta griezes momenta jauda, zema ietekme, drošs mehānisms Puscollas trieciena ratchets, 280 mm, 9022SR-1, augsta griezes momenta jauda, zema ietekme, drošs mehānisms Puscollas trieciena ratchets, 280 mm, 9022SR-1, augsta griezes momenta jauda, zema ietekme, drošs mehānisms Puscollas trieciena ratchets, 280 mm, 9022SR-1, augsta griezes momenta jauda, zema ietekme, drošs mehānisms Puscollas trieciena ratchets, 280 mm, 9022SR-1, augsta griezes momenta jauda, zema ietekme, drošs mehānisms Puscollas trieciena ratchets, 280 mm, 9022SR-1, augsta griezes momenta jauda, zema ietekme, drošs mehānisms Puscollas trieciena ratchets, 280 mm, 9022SR-1, augsta griezes momenta jauda, zema ietekme, drošs mehānisms

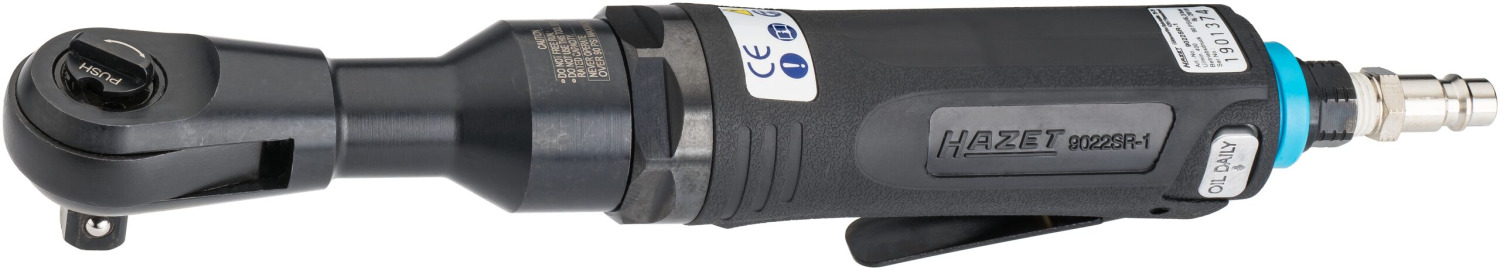

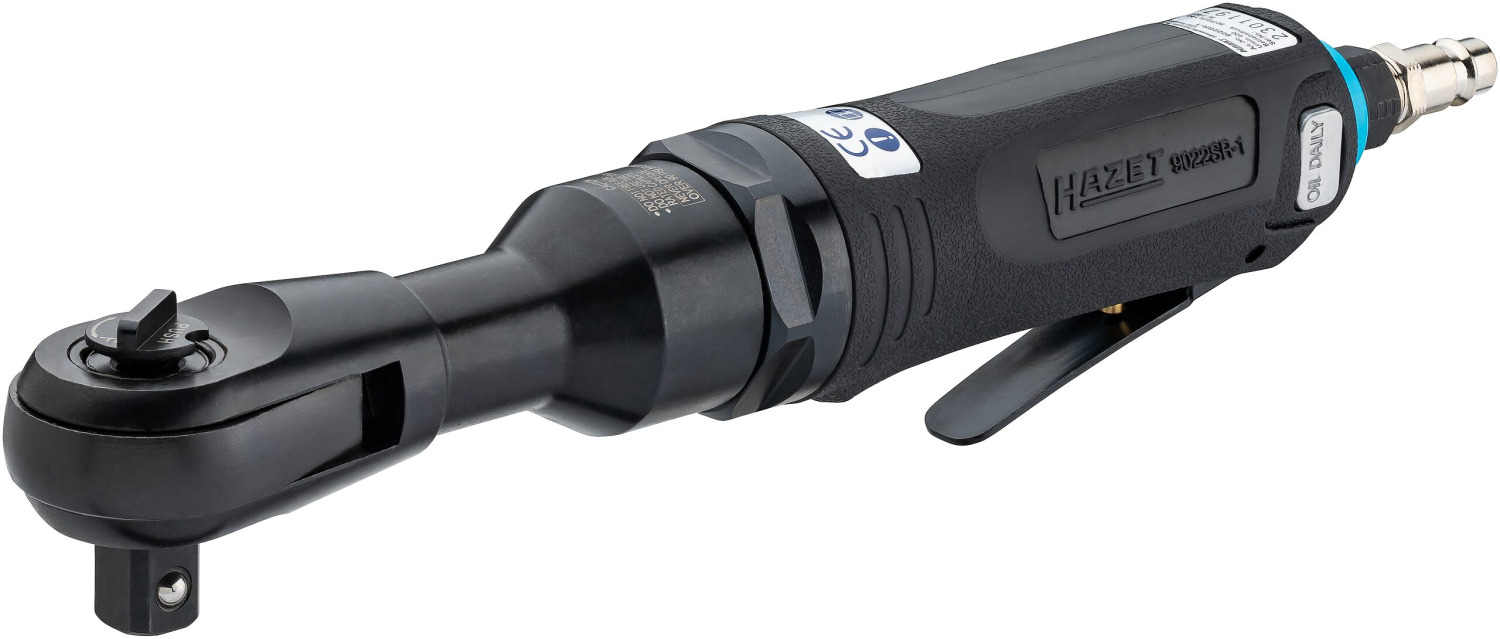

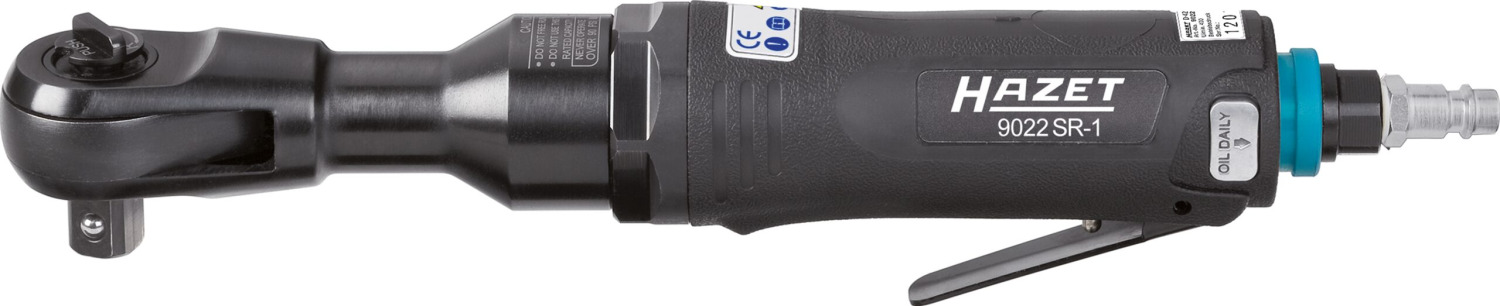

Puscollas trieciena ratchets, 280 mm, 9022SR-1, augsta griezes momenta jauda, zema ietekme, drošs mehānisms

Code:
9022SR-1
Sorry, the product you are looking for is no longer available. However, you can buy other similar products from the same category or continue shopping in the product catalog.
HAZET Read more

Technical specification:

Weight, kg 1.28
Sound pressure level, dB (A) 91
Sound power level, dB (A) 98
RPM, min-1 400
Max. torque, Nm 102
Working pressure, bar 6.3 bar
Air intake, l / min 113
Device dimensions (G \ / P \ / A), cm 280 mm
Direction of rotation single-stage (right/left)
Vibration uncertainty (K factor), m \ / sec² 4.532
Length, mm 280
Hose diameter, mm 10 mm
Lock 1/2"
Hose connection Nominal size 7.2 (included); Inside thread 12.91 mm (1/4″)
Kasutusmeetod For impact operation
Air intake, l/s 1.9 l/sec
Handle Cold insulated handle

Description:

  • High occupational safety thanks to reaction-free striking mechanism
  • Low-impact
  • High torque values – approx. 30% more than standard products
  • Rotation speed – approx. 3 x higher than standard products
  • Suitable for manual retightening with torque values > 270 Nm (competing products with only approx. 250 Nm)


Manual/impact operation: For impact operation
Tightening torque maximum: 102 Nm
Output: 1/2 inch (12.5 mm) square, solid
Net weight: 1.28 kg
Striking mechanism (type): Powerful pin clutch mechanism
Air requirement: 113 l/min
Forward and reverse: single-stage (right/left)
Dimensions: 280 mm
Handle: Cold insulated handle
Hose diameter (recommended): 10 mm
Vibration acceleration: 4.53 m/s2
Length: 280 mm
Sound pressure level: 91 dB(A) Lp A
Revolutions per minute: 400
Air connection inlet: Inside thread 12.91 mm (1/4″)

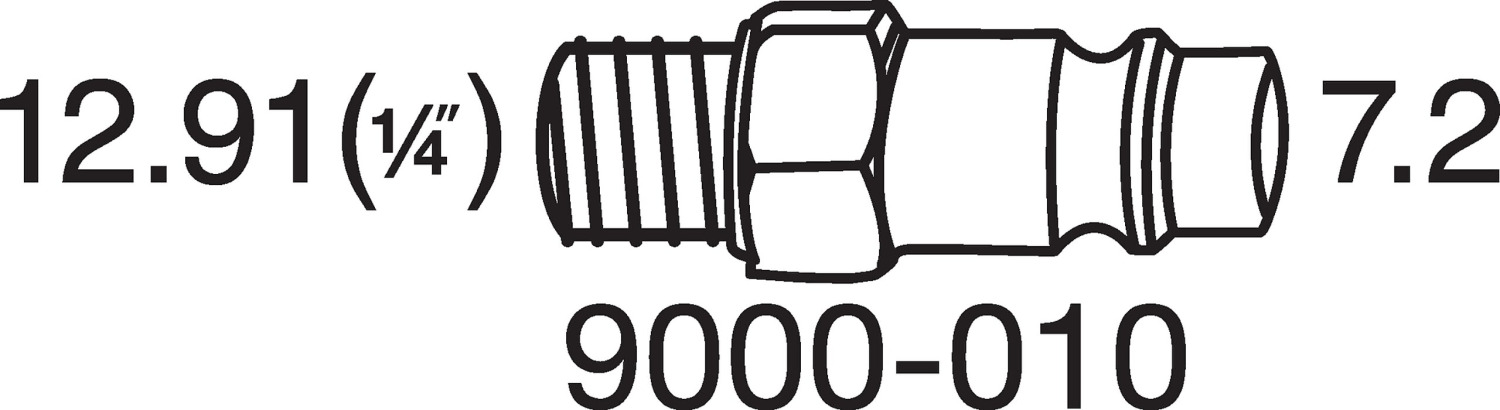

Coupler plug: Nominal size 7.2 (included)
Sound power level: 98 db(A) Lp W
Air requirement [l/sec]: 1.9 l/sec
Working pressure ( bar ): 6.3 bar
