Digitālais krāsas biezuma mērītājs, YATO, YT-72900, mērīšanas diapazons 0-1.3 mm, precizitāte +/-3% + 2 μm

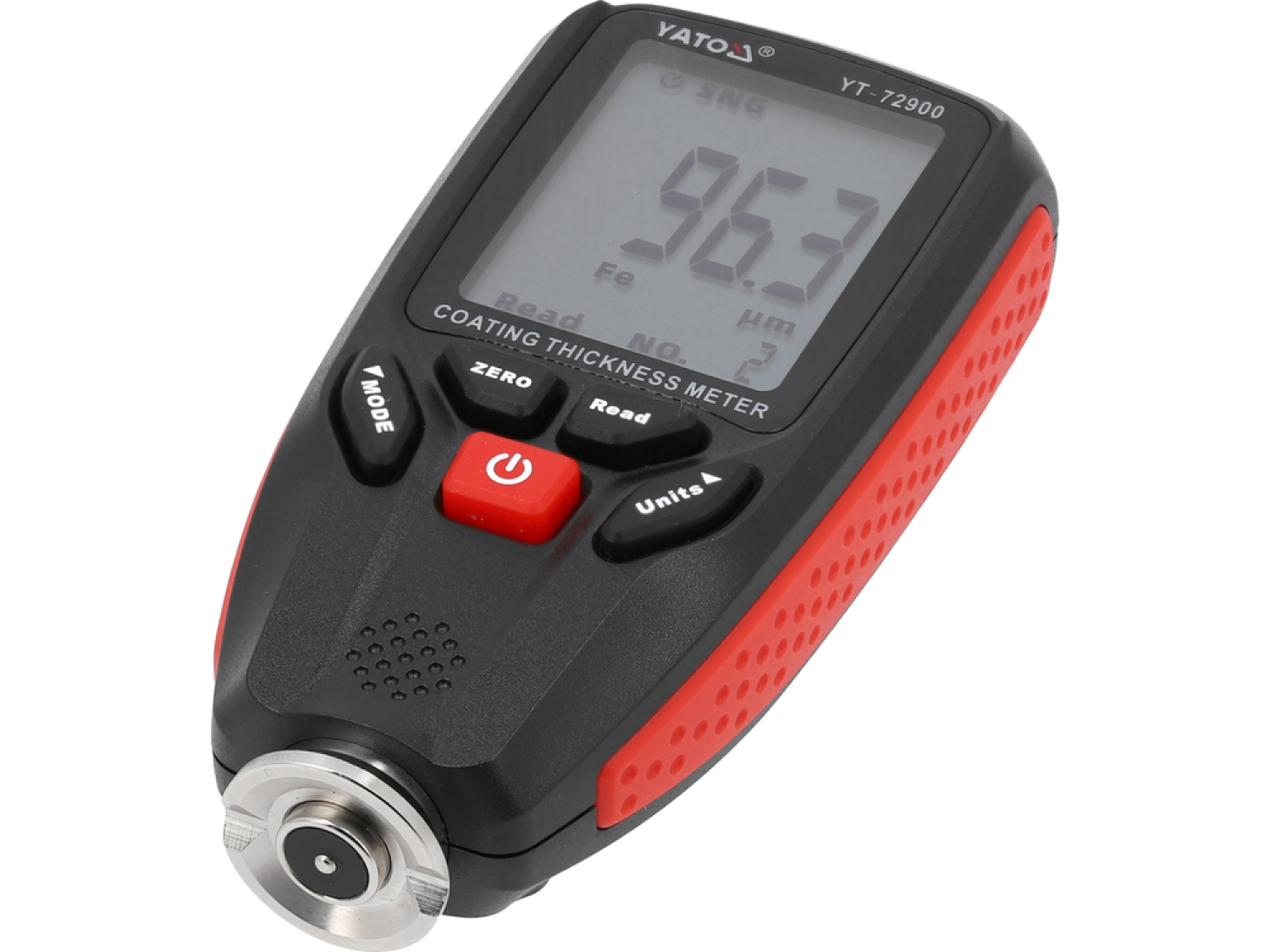

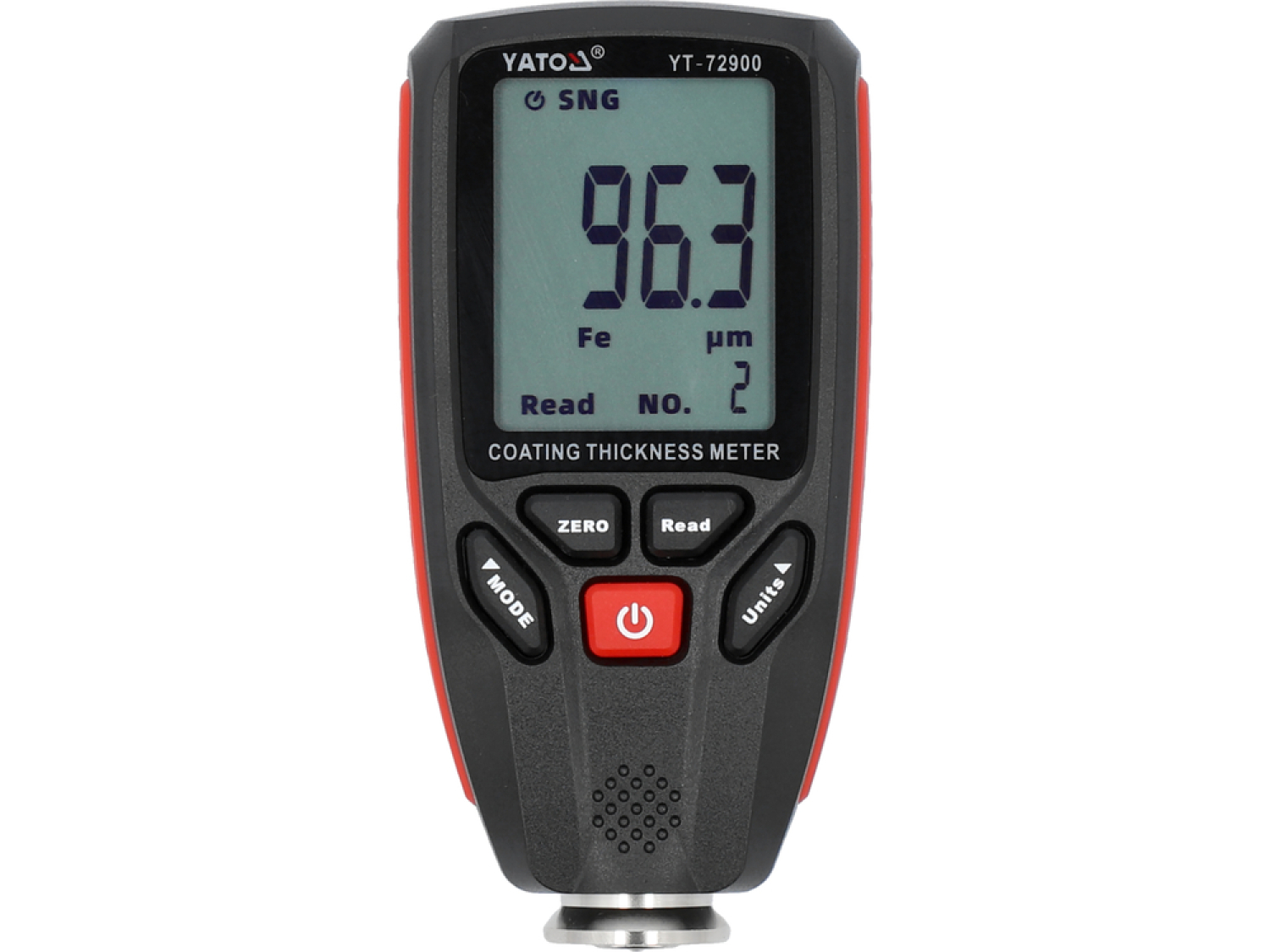

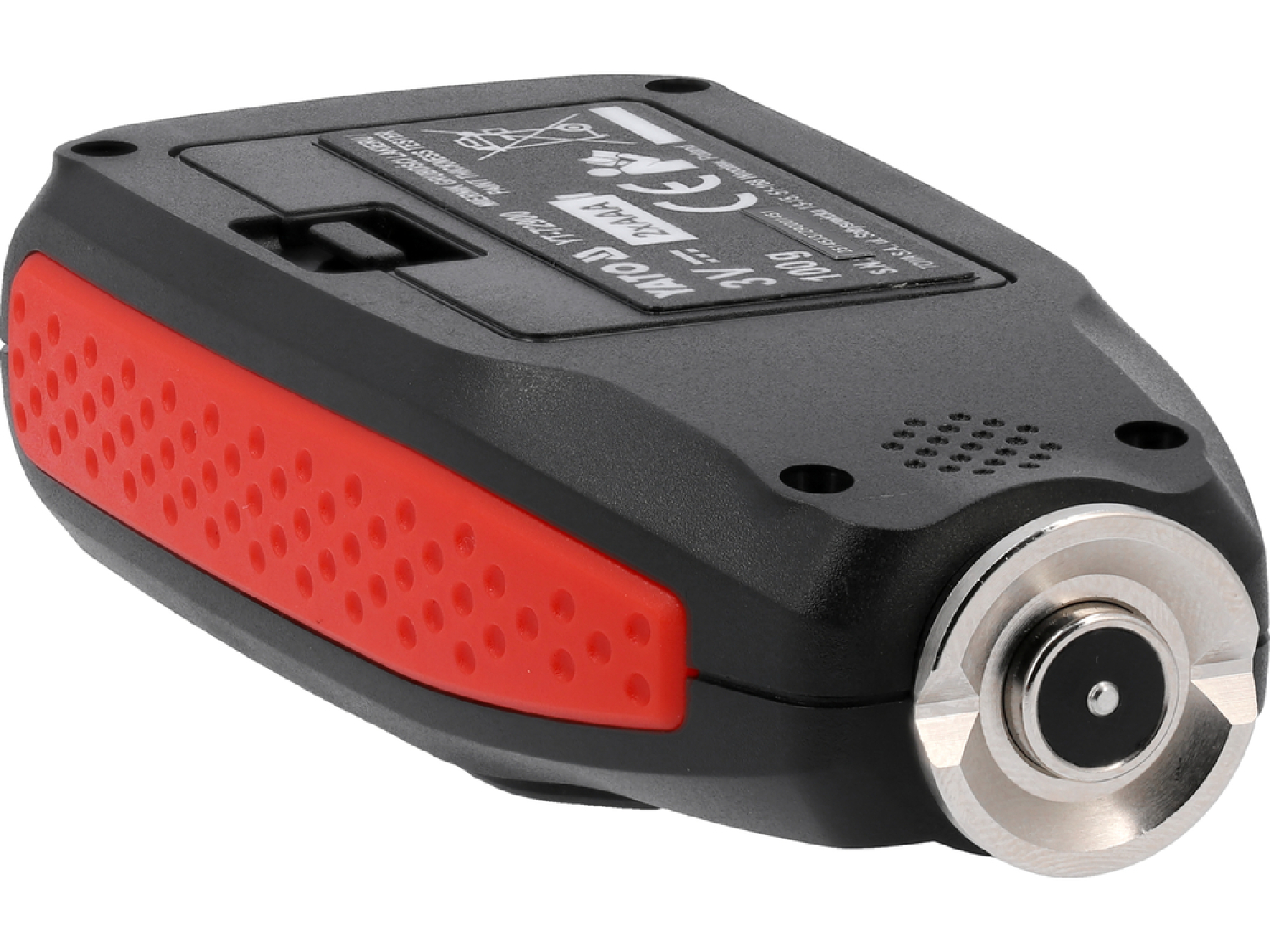

The YATO Digital Paint Thickness Tester (model YT-72900) is a precise gauge designed for measuring the thickness of paint and coatings on both magnetic and non-magnetic materials. It is commonly used in the automotive, metal, and chemical industries to ensure the quality of coatings.

This tester offers a measurement range of 0 to 1.3 mm, automatically detecting the substrate material to provide reliable readings even on curved or angled surfaces.

• Suitable for iron and non-iron coatings - including steel, copper, and aluminum
• Automatic detection of the tested material
• Measurement range: 0-1.3 mm (0-1300 μm)
• Measurement accuracy: ±3% + 2 μm
• Result resolution: 0.1 µm
• Minimum convex radius: 1.5 mm
• Minimum concave radius: 25 mm
• Minimum measurement area diameter: 6 mm
• Minimum tested thickness: iron 0.5 mm, others 0.3 mm
• Memory for the last 20 results
• High-resolution screen
• Self-test function
• Operating temperature: 0-40°C
• Operating humidity: 20-90%, relative humidity: <80%</li>
• Power supply: 2 AAA batteries, 1.5 V
• Dimensions: 105 x 52 x 25 mm
• Weight: 100 g

Series: GRF
Measuring range: 0-1300 µm
Grain: 0.1 µm
Measurement accuracy: 3% ± 2 µm
Minimum thickness of measured surface (Fe / NFe): 0.5 / 0.3 mm
Minimum radius of convex curvature: 1.5 mm
Minimum radius of concave curvature: 25 mm
Minimum diameter of the area to be measured: 6 mm
Measurement memory: 20
Dimensions: 105x52x25 mm
Power supply type: Battery
Cell type: 2x1.5V; AAA
Operating relative humidity (Rh): <80 %<br>Working temperature range: 0~40 ˚C
Storage temperature: -10 ~ +50 ˚C
Weight: 100 g
Application: Checking the thickness of the varnish layer on aluminum and steel coatings
