Otseülekandega õlikompressor 50L, YT-23306, YATO, 2200 W, 412 L/min, 2 silindrit, 8 bar Otseülekandega õlikompressor 50L, YT-23306, YATO, 2200 W, 412 L/min, 2 silindrit, 8 bar Otseülekandega õlikompressor 50L, YT-23306, YATO, 2200 W, 412 L/min, 2 silindrit, 8 bar Otseülekandega õlikompressor 50L, YT-23306, YATO, 2200 W, 412 L/min, 2 silindrit, 8 bar Otseülekandega õlikompressor 50L, YT-23306, YATO, 2200 W, 412 L/min, 2 silindrit, 8 bar Otseülekandega õlikompressor 50L, YT-23306, YATO, 2200 W, 412 L/min, 2 silindrit, 8 bar Otseülekandega õlikompressor 50L, YT-23306, YATO, 2200 W, 412 L/min, 2 silindrit, 8 bar Otseülekandega õlikompressor 50L, YT-23306, YATO, 2200 W, 412 L/min, 2 silindrit, 8 bar

Otseülekandega õlikompressor 50L, YT-23306, YATO, 2200 W, 412 L/min, 2 silindrit, 8 bar

Code:
YT-23306
Sorry, the product you are looking for is no longer available. However, you can buy other similar products from the same category or continue shopping in the product catalog.
YATO Read more

Technical specification:

Type Compressor
RPM, min-1 2850
Working pressure, bar 8
Air flow, l \ / min 412
Tank capacity, l 50
Voolu sagedus, Hz 50

Description:

The YATO Direct Driven Oil Compressor 50L (model code YT-23306) is a powerful two-cylinder air compressor designed for a variety of applications. This versatile unit is perfect for driving compressed air equipment, blowing boreholes, and cleaning surfaces in industrial settings, workshops, agriculture, and construction sites.


  • Power: 2200 W (3 HP)
  • Motor speed: 2850 rpm
  • Capacity: 412 l/min
  • Max. pressure: 0.8 MPa / 8 bar
  • Tank capacity: 50 l

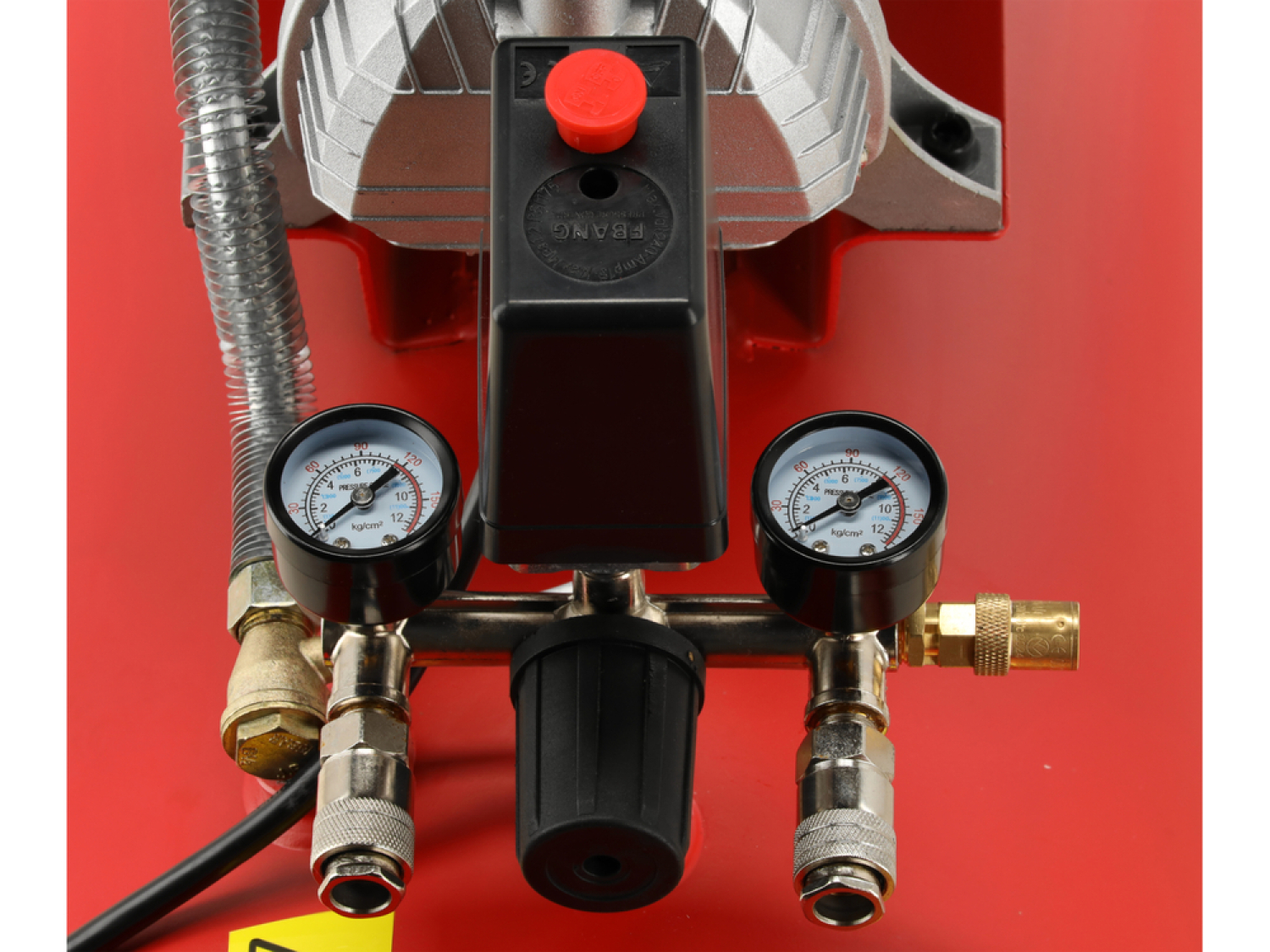

  • Pressure gauge included
  • Protection rating: IPX0
  • Electrical insulation class: I
  • Two wheels for easy mobility
  • Weight: 42 kg
  • Includes 2 quick couplers

Usage warnings:


Warning! Before first use, fill with oil and replace the transport plug with the supplied oil plug.

  • Series: GRF
  • Tank capacity: 50 l
  • Power: 3 KM
  • Max. pressure: 0.8 / 8 / 116 MPa/bar/PSI
  • Volume: 412 l/min
  • Rotations: 2850 min⁻¹
  • Voltage: 230 V a.c.
  • Frequency: 50 Hz
  • Short-circuit current: 55 A
  • Load current: 9.3 A
  • Number of cylinders in engine: 2
  • Wheels: Yes
  • Number of wheels: 2
  • Manometer: Yes
  • Electric insulation class: I
  • Protection grade: IPX0
  • Acoustic pressure: 75.1 ± 2.11 dB(A)
  • Acoustic power: 95.1 ± 2.11 dB(A)
  • Weight: 42 kg
  • Set includes: Compressor, quick connector x2
